Stained glass patterns that fit your window

Every pattern here is a Vetrata file, not a fixed PDF. Resize it to your opening, try it in your own glass, and print the cutting pattern true to scale.

Download the free pattern See the patterns

Sunwheel window 600 × 900 mm · 107 pieces · Lead came

Description: Sunwheel windowLeaded size: 600 × 900 mmCutlineZinc Interior BorderAAAAAAAAAAOAAAOAAAAHDIDKHIHIHIIHIHJJEEFEJCDJJNLGNMGLNFBCDFGMLFBCBEEMEFCEJDDDJFEMJGJJBFFGBCLLLCFJCJFMBJJCBFNA = Cobalt Blue Cathedral; B = Clear Water Wave; C = Clear Glue Chip; D = Clear Full Antique; E = Clear Seedy; F = Clear Rain; G = Clear Crackle; H = Golden Amber Cathedral; I = Red and Amber Streaky; J = Clear Reamy; K = Clear Pressed Jewel; L = Clear Hammered; M = Clear Rough Rolled; N = Clear Flemish; O = Ruby Red Cathedral

Patterns

76 patterns, free

Free pattern

Sunwheel window

by VETRATA

A round-topped leaded light: a sunwheel of twelve curved petals round a pressed jewel in its head, clear textured quarries below, a coloured border and a zinc frame.

Size
600 × 900 mm, to resize to your opening
Pieces
107, every one numbered
Technique
Lead came
Colourways
Cobalt and amber, Emerald and gold, Ruby and violet, Clear
Download A Vetrata file. Open it in VETRATA Studio with File › Open Glass file.

New patterns

See all 76 patterns

Browse by category

Flowers & plants 27 patterns Birds 4 patterns Animals 1 pattern Butterflies & insects 4 patterns Sea & water 15 patterns Sun, moon & stars 8 patterns Geometric 7 patterns Rosettes & mandalas 5 patterns Religious 4 patterns Seasonal 10 patterns Celtic & knotwork 5 patterns

See all 76 patterns

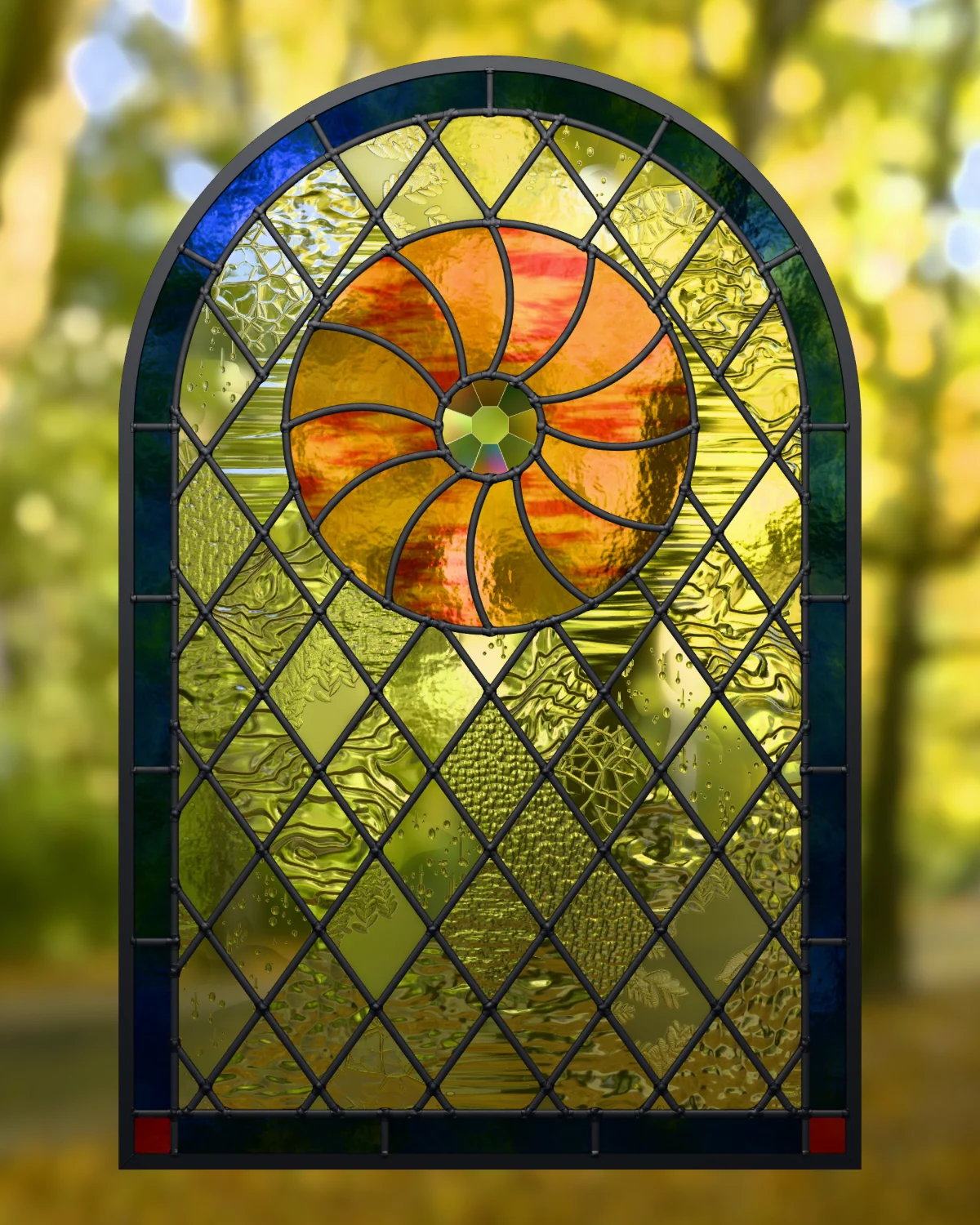

Sunwheel window in its first colourway, lit by a golden evening behind it: a cobalt border, an amber rosette round a pressed jewel, and clear textured quarries.

Make it yours

Open a pattern in VETRATA Studio, free in your browser. Change any glass, keep colourways side by side, and see the window in the light it will hang in before you cut a piece.

  • Resize it to your opening. The leads stay the width of your came.
  • Try your own glass. Photograph a sheet and the Studio makes a glass of it.
Open VETRATA Studio

Ready for the bench

What one Vetrata file gives you

The cutting pattern of Sunwheel window on 16 pages of A4, laid out side by side: each page a part of the full-size pattern with its piece numbers, and marks at its corners to tape it to the next.
Sunwheel window, full size on 16 pages of A4.
The cutting pattern, full size
Printed true to scale on your own printer, 16 sheets of A4 or 16 of US Letter for this window, with marks to tape them by and a 100 mm square to check the printer.
A pattern plan with a colour key
Every piece numbered and every glass lettered, the leads drawn the width of their came.
Lead came or copper foil
Choose your technique, and the cut lines follow it.
Pieces for a CNC or laser cutter
Every piece on its own, as SVG or DXF.
Yours to keep
Gumroad keeps every pattern you buy in your library, to download again whenever you need it.
