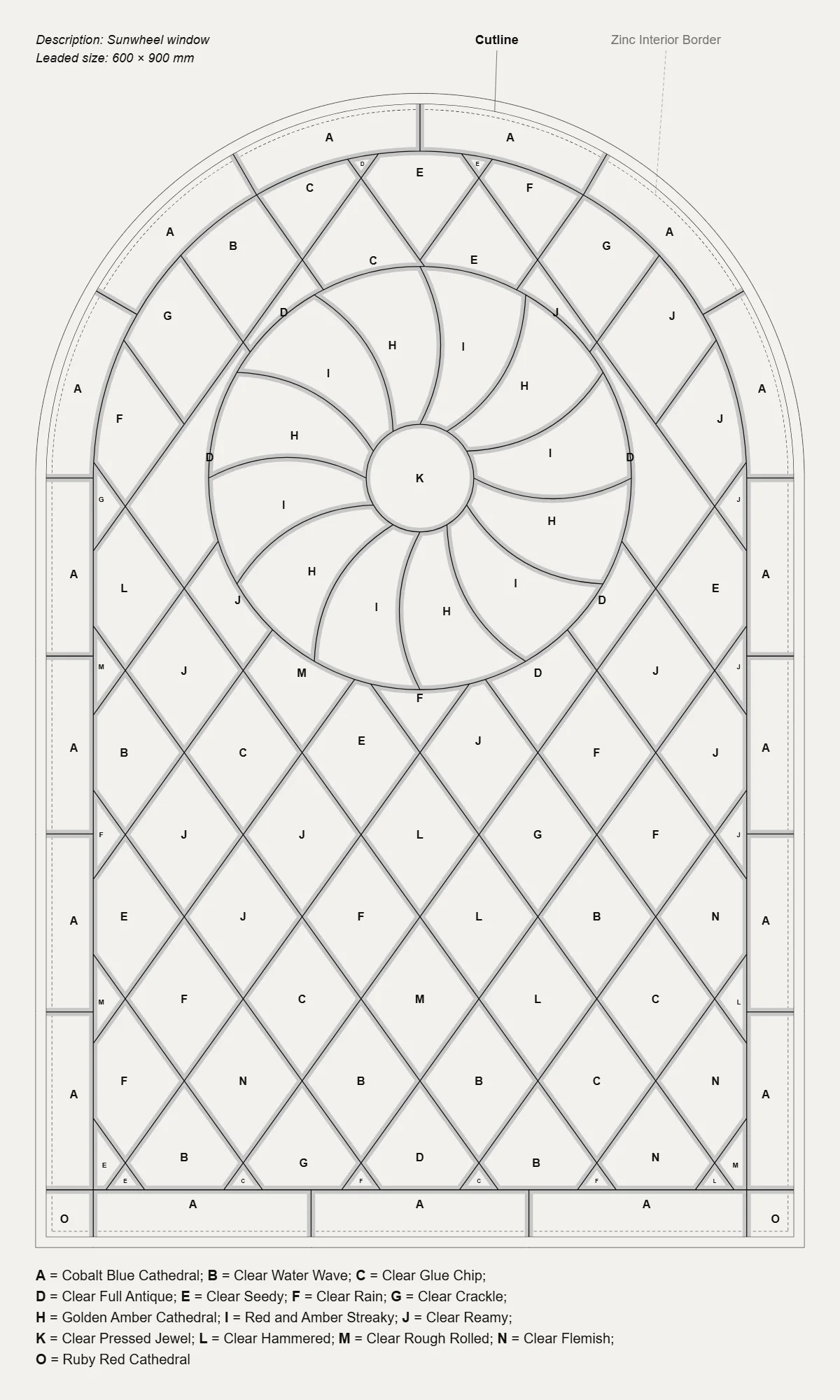

The pattern plan of Sunwheel window, 600 × 900 mm in 107 pieces: its lead lines, every glass lettered, and its colour key.

Free stained glass pattern

Sunwheel window

by VETRATA

A round-topped leaded light: a sunwheel of twelve curved petals round a pressed jewel in its head, clear textured quarries below, a coloured border and a zinc frame.

Download the free pattern Open VETRATA Studio
Size
600 × 900 mm, to resize to your opening
Pieces
107, every one numbered
Technique
Lead came
Glasses
15, each lettered on the plan
Colourways
Cobalt and amber, Emerald and gold, Ruby and violet, Clear
Type
Window
Style
Victorian
Shape
Arched

A Vetrata file, not a fixed PDF: open it in VETRATA Studio with File › Open Glass file, resize it to your opening, try it in your own glass and print the cutting pattern full size.

Save to Pinterest

In its colourways

4 colourways saved in the file, lit from behind, as the Studio's Preview shows it

Sunwheel window in its Cobalt and amber colourway, lit from behind.
Cobalt and amber
Sunwheel window in its Emerald and gold colourway, lit from behind.
Emerald and gold
Sunwheel window in its Ruby and violet colourway, lit from behind.
Ruby and violet
Sunwheel window in its Clear colourway, lit from behind.
Clear

What the file gives you

Every figure measured from Sunwheel window itself

The cutting pattern, full size
Printed true to scale on your own printer: 16 sheets of A4 or 16 of US Letter at this size, with marks to tape them by and a 100 mm square to check the printer.
A pattern plan with a colour key
Every piece numbered and each of its 15 glasses lettered, the leads drawn the width of their came.
Any size you need
Resized to your opening in the Studio, the leads stay the width of your came. How to resize a pattern and print it
Lead came or copper foil
Drawn for lead came; switch it in the Studio, and the cut lines follow. Lead came or copper foil?
Pieces for a CNC or laser cutter
Every piece on its own, as SVG or DXF.
Free
Download the file and open it in VETRATA Studio, free in your browser.
