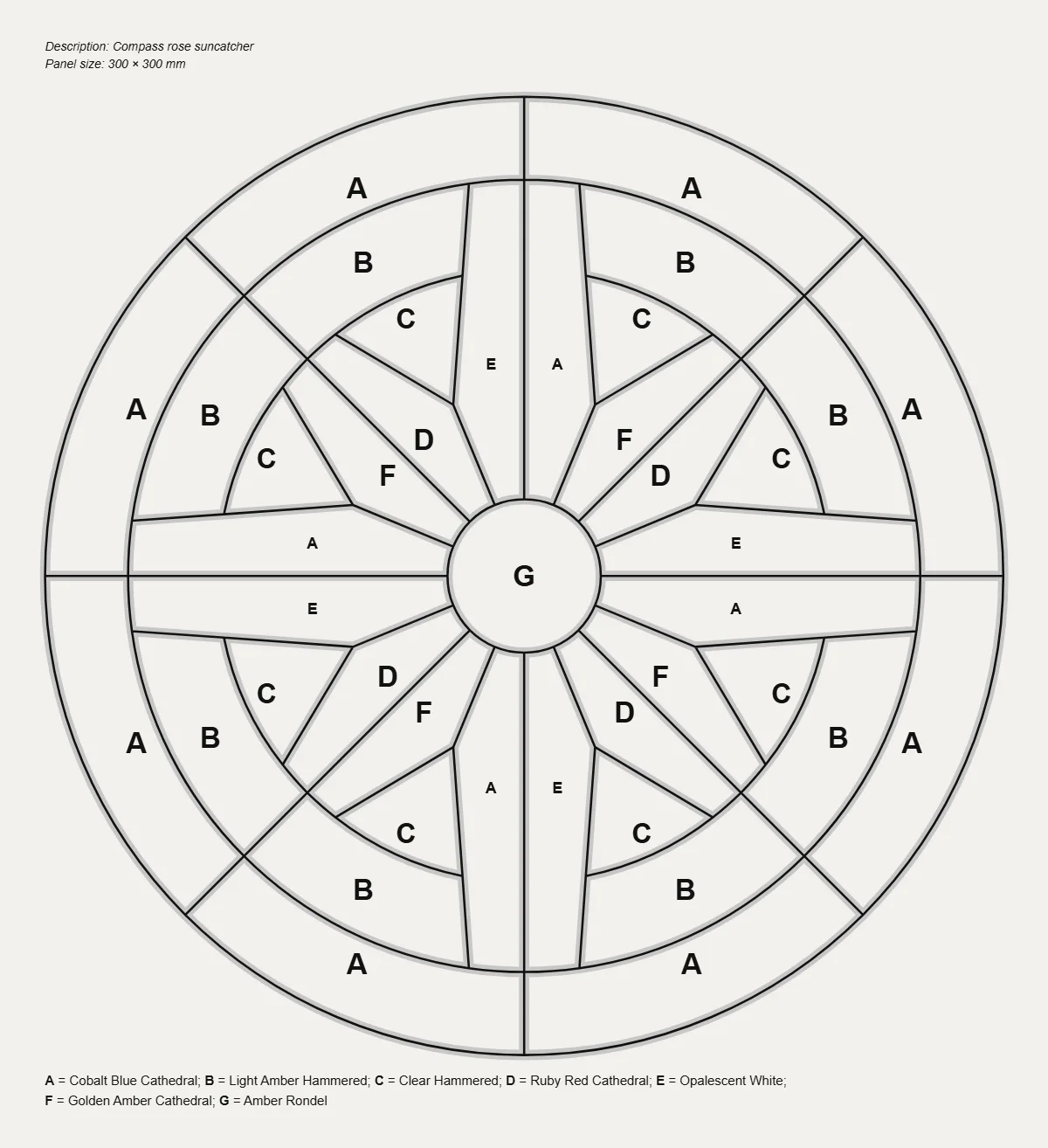

The pattern plan of Compass rose suncatcher, 300 × 300 mm in 41 pieces: its lead lines, every glass lettered, and its colour key.

Free stained glass pattern

Compass rose suncatcher

by VETRATA

A compass rose: the four points in cobalt and white, the four between in ruby and amber, on clear hammered glass inside a gold band and a cobalt rim.

Download the free pattern Open VETRATA Studio
Size
300 × 300 mm, to resize to your opening
Pieces
41, every one numbered
Technique
Copper foil
Glasses
7, each lettered on the plan
Type
Suncatcher
Style
Contemporary
Shape
Round

A Vetrata file, not a fixed PDF: open it in VETRATA Studio with File › Open Glass file, resize it to your opening, try it in your own glass and print the cutting pattern full size.

Save to Pinterest

In light

lit from behind, as the Studio's Preview shows it

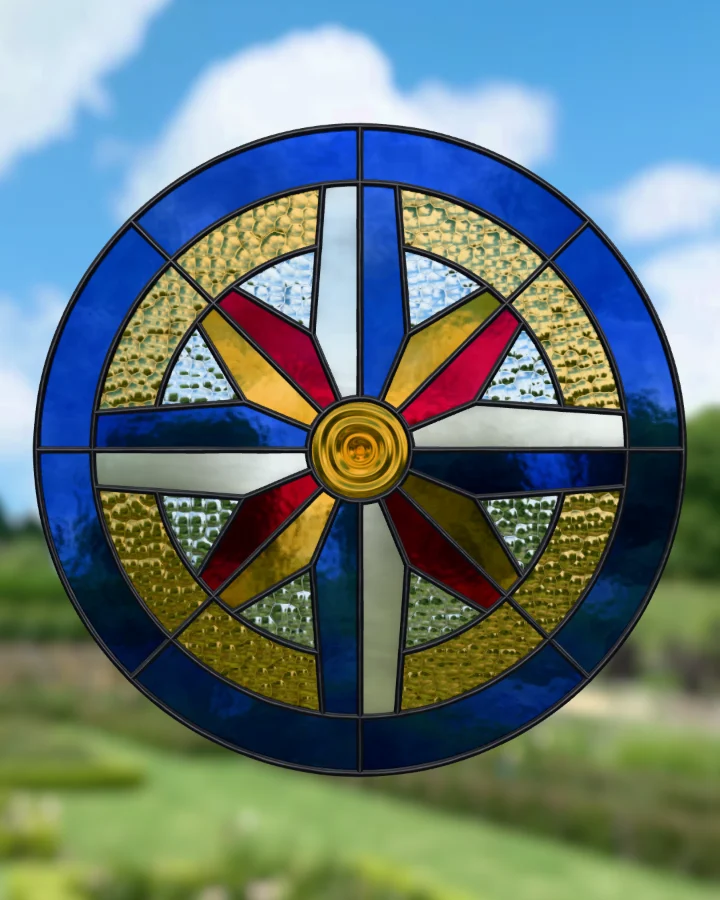

Compass rose suncatcher glazed, lit from behind.
As it is

What the file gives you

Every figure measured from Compass rose suncatcher itself

The cutting pattern, full size
Printed true to scale on your own printer: 4 sheets of A4 or 4 of US Letter at this size, with marks to tape them by and a 100 mm square to check the printer.
A pattern plan with a colour key
Every piece numbered and each of its 7 glasses lettered, the leads drawn the width of their came.
Any size you need
Resized to your opening in the Studio, the leads stay the width of your came. How to resize a pattern and print it
Lead came or copper foil
Drawn for copper foil; switch it in the Studio, and the cut lines follow. Lead came or copper foil?
Pieces for a CNC or laser cutter
Every piece on its own, as SVG or DXF.
Free
Download the file and open it in VETRATA Studio, free in your browser.
